DHO800 Series : Digital Oscilloscope

Previous slide

Next slide

The DHO800 series is RIGOL’s new launched high-performance economical digital oscilloscope.Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise.

รายละเอียดทั่วไป (Feature)

Ultra-low noise floor, purer signal, never miss the small signals
Up to 12 bits resolution for all the models of this series
Max. analog bandwidth of 100 MHz, 4 analog channels, external trigger output (std.) available for the dual-channel model
Max. real-time sample rate of 1.25 GSa/s
Max. memory depth of 25 Mpts
Vertical sensitivity range: 500 μV/div to 10 V/div
Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
Digital phosphor display with real-time 256-level intensity grading
Waveform search and navigation function
7″ (1024×600) capacitive multi-touch screen
Brand new Flex Knob brings user-friendly experience

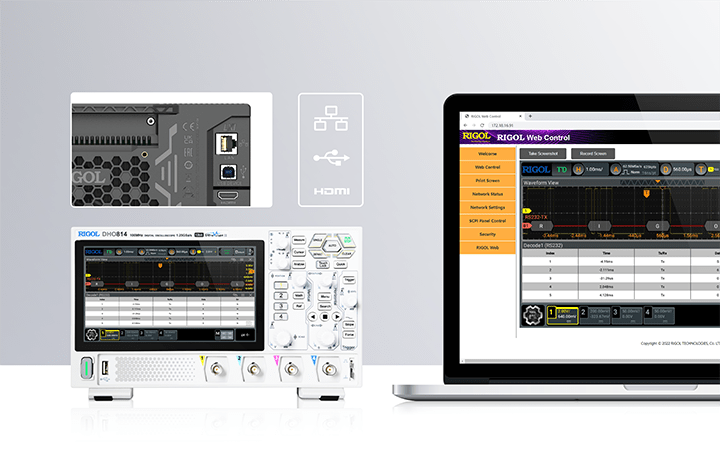

USB Device & Host, LAN, and HDMI
Unique online upgrade

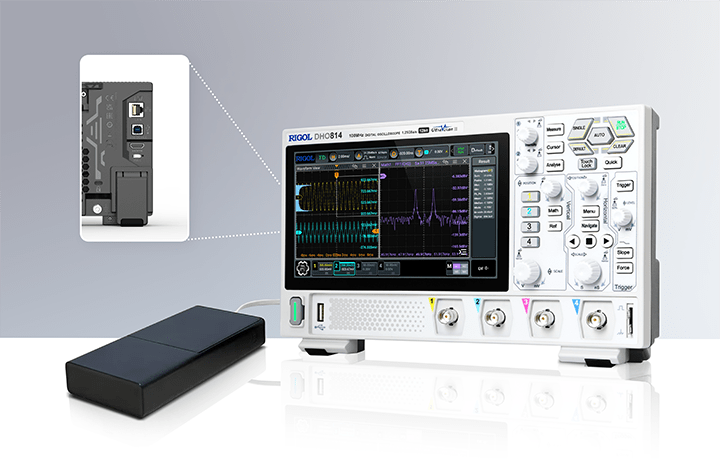

Support Type-C Power

Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.

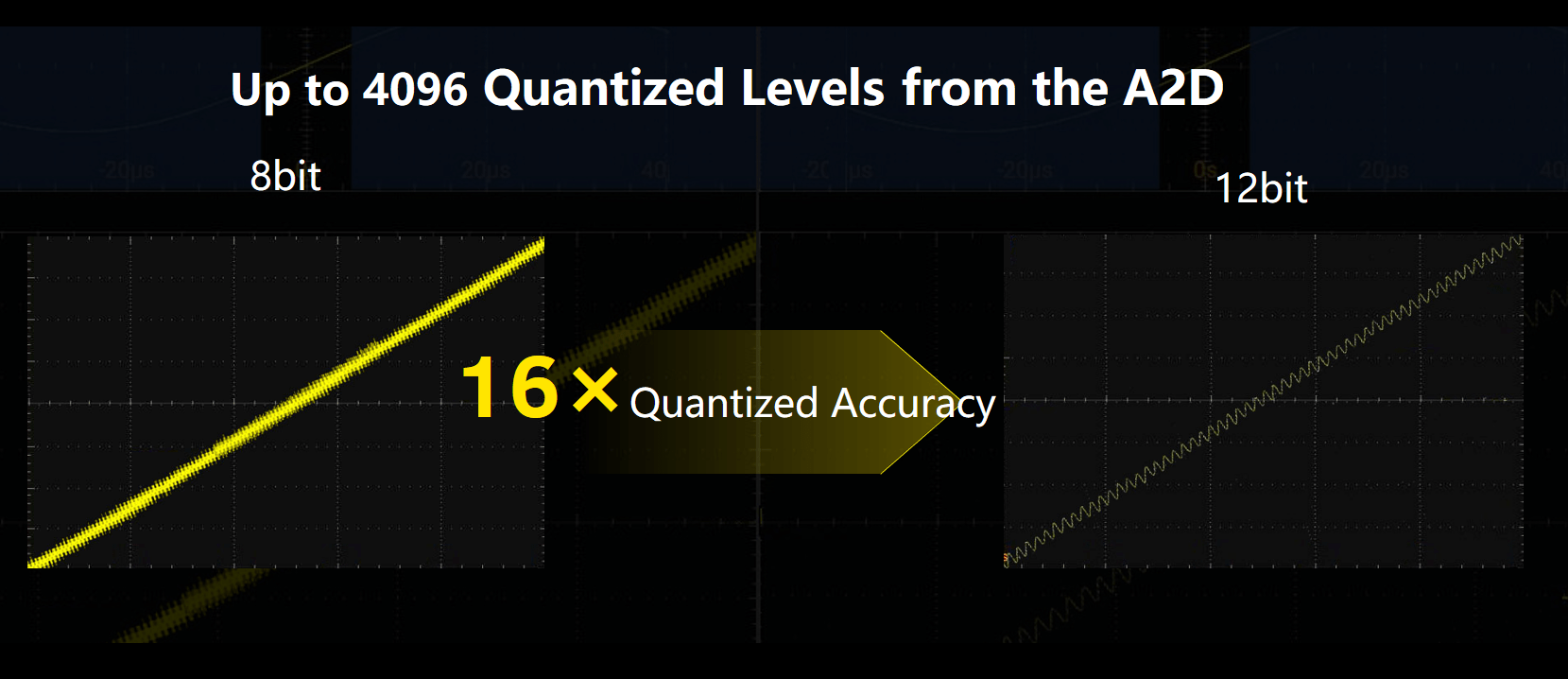

High-resolution 12-bit

12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

Sleek Design

The DHO800 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.

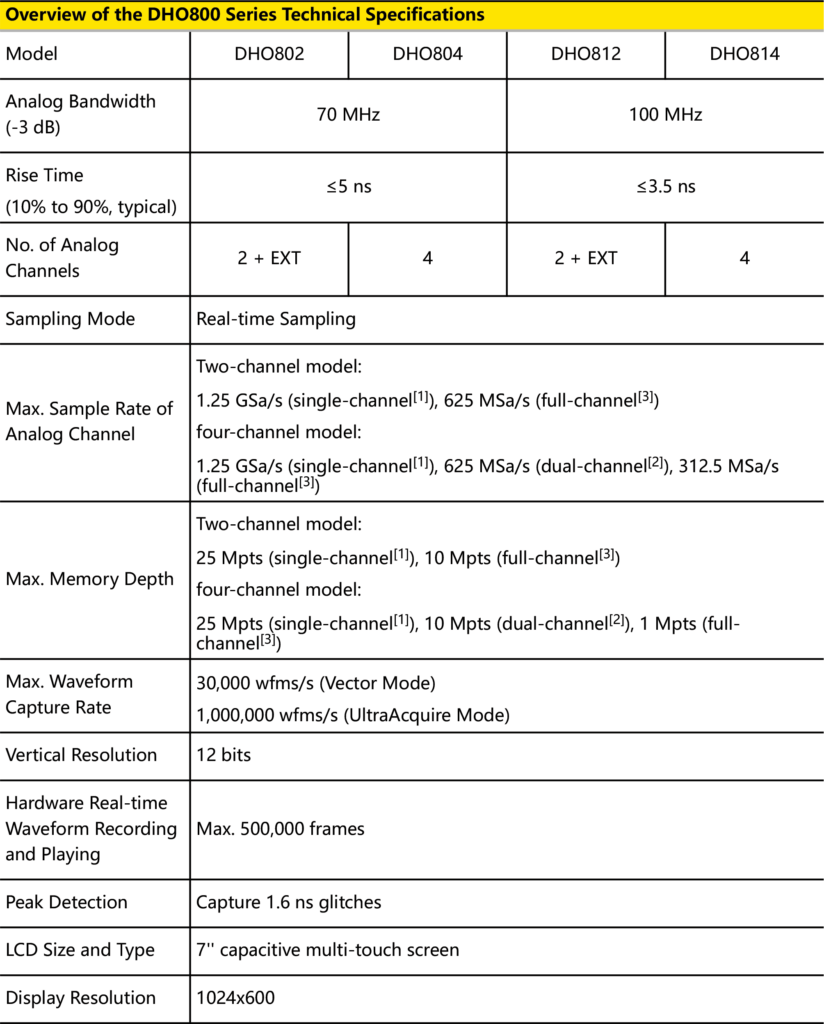

รายละเอียดทางเทคนิค (Overview Technical Specifications)

ดาวน์โหลด (Downloads)

Getting Started

DHO800 Series QuickGuide

Datasheets

DHO800 Series Datasheet

User Manuals

DHO800 Series User Manual

DHO800 Series Programming Manual

Catalog

RIGOL Full Products Catalog

RIGOL Product's Selection Guide

Software

Ultra Sigma (PC) Installer

สิ่งที่มากับสินค้า (What's in the Box)

DHO800 Series : Digital Oscilloscope x 1 เครื่อง
สาย Passive Probe PVP3150
DHO814/DHO804: Passive Probe x4 (150 MHz) x 4 เส้น
DHO812/DHO802: Passive Probe x2 (150 MHz) x 2 เส้น
USB Cable x 1 เส้น
Power Adapter x 1 ชุด
สายต่อ Ground x 1 เส้น
